UÇAK PERVANESİ EĞİTİM SETİ

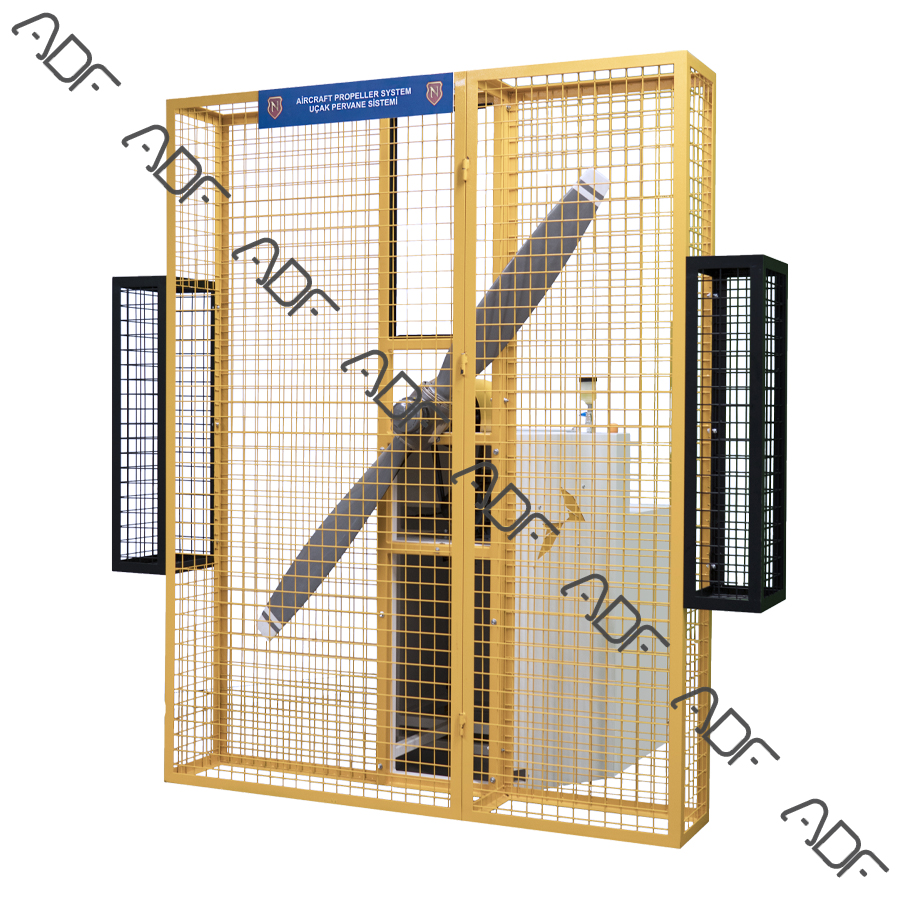

RAP 100B UÇAK PERVANESİ EĞİTİM SETİ

Trainees examine and learn propeller operation procedures and maintenance procedures in runnable aircraft propeller training set.

Constant Speed Propeller

Features:

  1. Understanding fundamentals of aircraft Propeller and its components.
  2. Functional and configured like a typical aircraft Propeller system.
  3. Propeller is constant speed propeller
  4. The hose and tubes used in the trainer should be labeled according to aviation standards.
  5. Propeller RPM control
  6. Pitch control
  7. Propeller guard
  8. Wirings on the trainer should be connected via terminals.
  9. Wires should have clear identification labels for each wire.
  10. All wires should be coded and labeled for troubleshooting.
  11. Instructor’s panel for Fault Insertion

Components:

  1. Constant Speed Propeller
    • RPM Gauge
    • Pressure Gauge
  2. EICAS/ECAM Screen
  3. Throttle lever – TQ
  4. Control Panel
  5. Master power panel
  6. Aircraft circuit breaker
  7. Electric motor
  8. Electric motor inverter
  9. Beacon

ATA Chapters

  • The system mounted on a metal/aluminum mobile stand.
  • Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
  • Training video for teachers
  • Delivered fully assembled tested and ready to operate
  • Colored Ultraviolet printing method on aluminum composite panel


Documentation:

  • User’s Manual
  • Study Guide
  • Components Diagrams


Power Specs

  • Electrical box
  • Residual current device
  • Emergency Button
  • Energy Signal Lamp
  • 110 VAC 60 Hz or 220-240 VAC 50 Hz


Dimensions and weight

  • Height: Width:    Depth:
