MANYETO TEST CİHAZI PANELİ

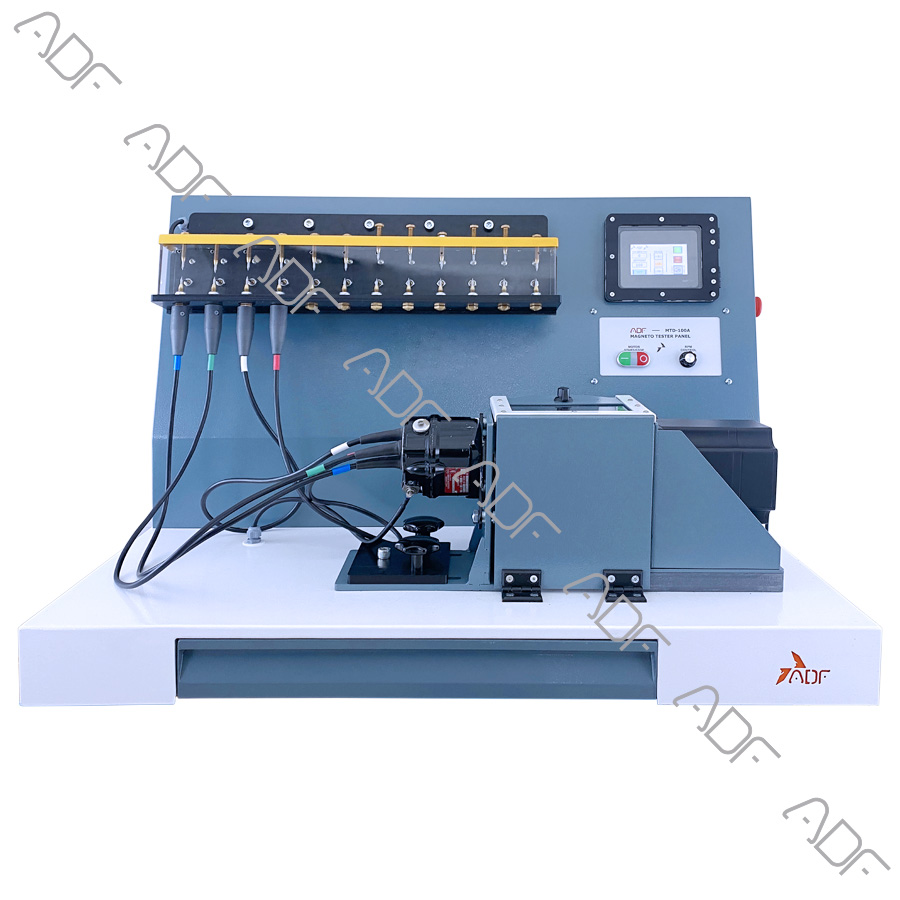

MTD 100A MANYETO TEST CİHAZI PANELİ

Magneto Test Bench can be used to test functionality of the most Bendix and Slick magnetos. It features a variable-speed drive motor with a solid-state speed controller and tachometer. The unit is reversible and can be used to test both right-hand and left-hand drive magnetos.

  • There is a tachometer (revolution measurement indicator) on the system.
  • There is a 2.2 kW AC motor and a motor driver on the system.
  •  System’s maximum operating device is 1500 RPM and system’s revolution is measured with a sensor momentarily.
  • HMI panel to control RPM
  • There are 12 spark bar unit in the system.
  • Magneto connection parts will be given with the system to connect magnetos easier to the main system.
  • There is closed cabinet at the lower part of the system.
  • The system mounted on a metal/aluminum mobile stand.
  • Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
  • Training video for teachers
  • Delivered fully assembled tested and ready to operate
  • Colored Ultraviolet printing method on aluminum composite panel

Power Specs

  • 220-240 VAC 50 Hz

Dimensions

  • Height: 115cm  Width: 100cm   Depth: 50cm
