ÇALIŞTIRILABİLİR TURBOŞAFT MOTOR (BENZİN START) EĞİTİM SETİ
RTSE 100A ÇALIŞTIRILABİLİR TURBOŞAFT MOTOR (BENZİN START) EĞİTİM SETİ

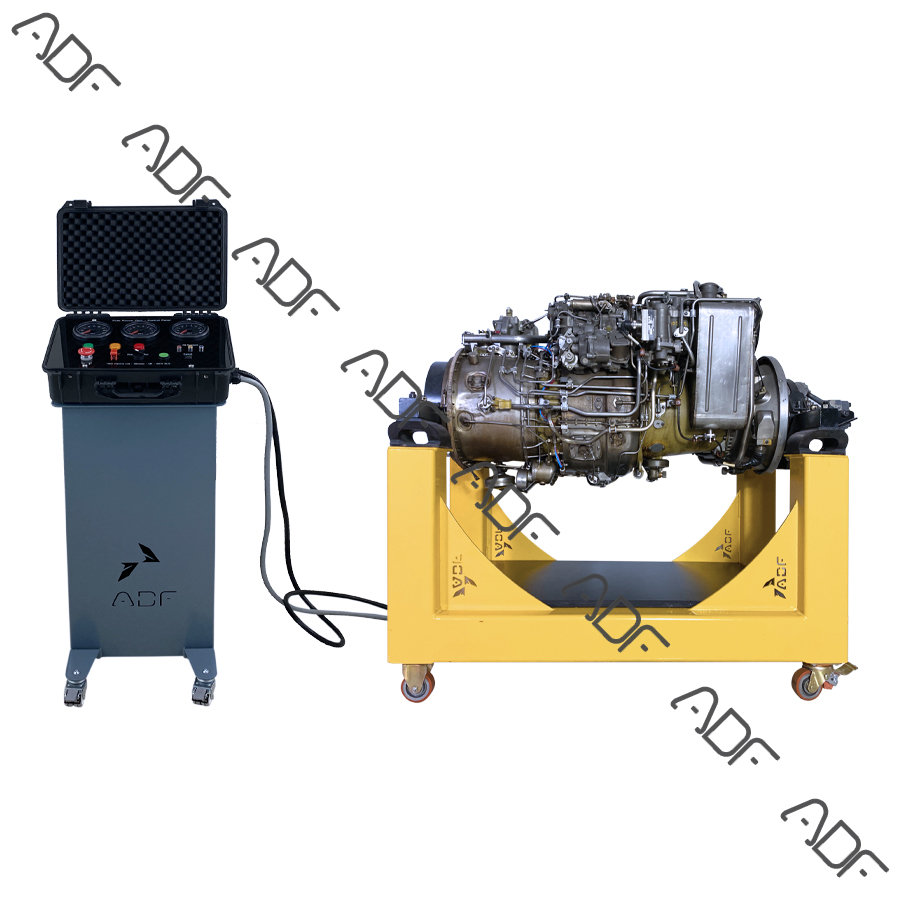

Trainees can learn basic components and systems in a gas turbine engine with RTSE-100A Runnable Turboshaft Engine training set. They can operate a gas turbine engine with the training set after learning on operational procedures. Training set includes all the systems that is on a gas turbine engine.

Trainer has 2 options. Please choose one of them when you order.

Option 1) Dry Start

Option 2) Fuel Start

Features:

  • Understanding fundamentals of aircraft Runnable Turboshaft Training Set and its components.
  • Engine;
    • 100% throttle, min 5500 RPM
    • 24V-30V DC Starter motor included
    • Oil tank on the engine included
    • Oil cooler included
    • Oil Pressure and Scavenge pumps included.
    • Ignition system included
    • 820-1230 BHP
    • Four (4) Stage Axial LP Compressor
    • Centrifugal Impeller HP Compressor
    • Bleed Valve
    • Nh turbine RPM is min 42400
    • NI turbine RPM is min 35,000
    • NPT turbine RPM is min 27,000
    • Overall Pressure Ratio is 12:1
    • At least 5 chip-detectors point – removed easily by hand
  • Fuel Tank included

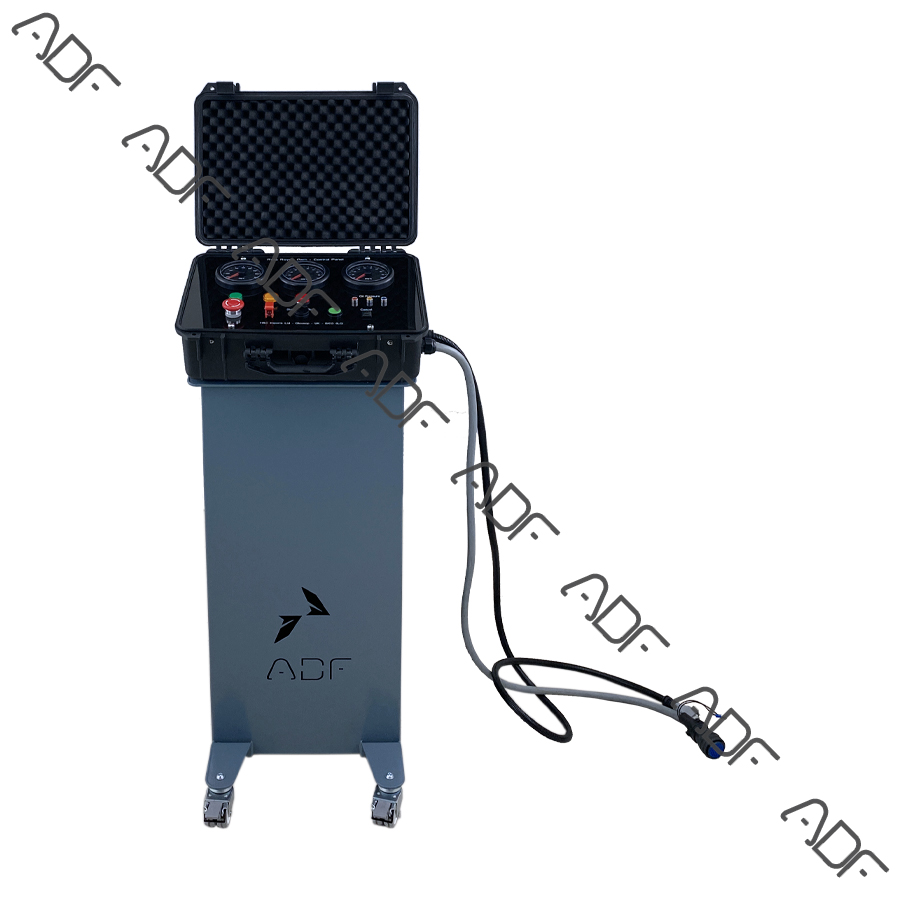

  • Movable kiosk for the operating panel

Components:

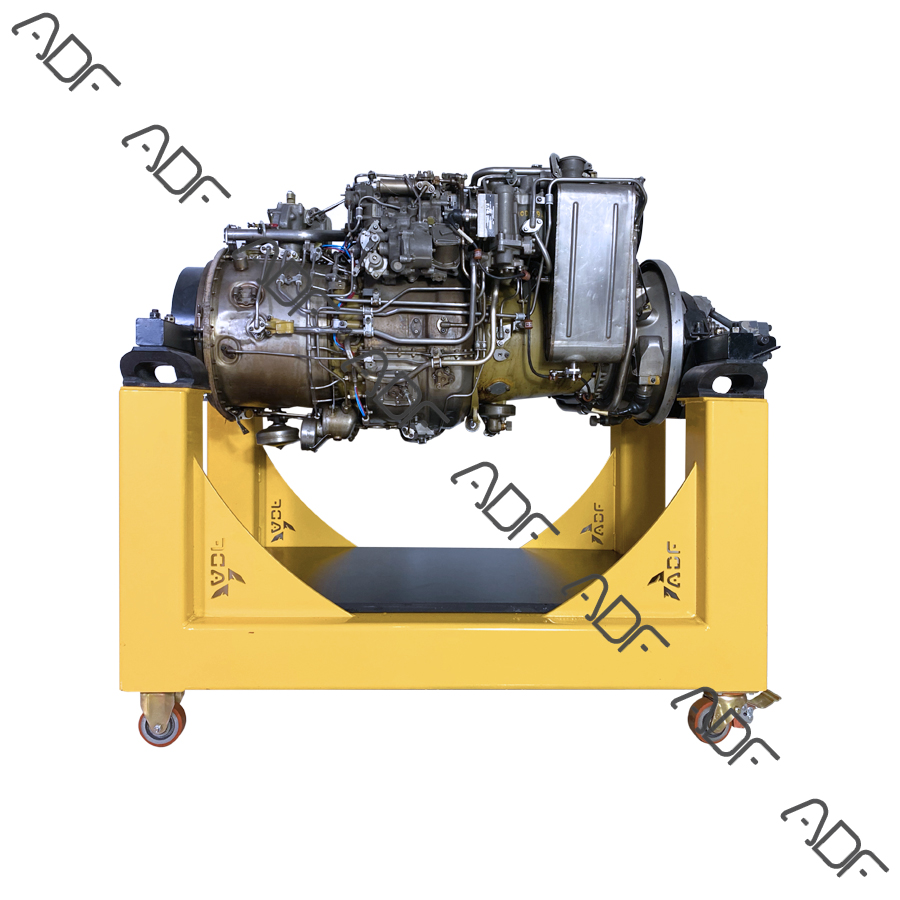

  • Turboshaft Engine
    • Starter
    • Oil pump
    • Igniter
    • Fuel pump
    • Oil Cooler
  • Master power switch
  • Start/Run switch
  • Start button
  • Cancel Button
  • Pressure light indicator
  • Power/start/running light
  • Starter control switch and light
  • İgnition control switch and light
  • HP RPM indicator
  • FPT RPM indicator
  • EGT indicator
  • Should have an original case
  • Battery

ATA Chapters

  • The system mounted on a metal/aluminum mobile stand.
  • Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
  • Training video for teachers
  • Delivered fully assembled tested and ready to operate
  • Colored Ultraviolet printing method on aluminum composite panel


Documentation:

  • User’s Manual
  • Study Guide
  • Instructor’s Guide
  • Device’s original Manual
  • Device’s original Wiring Diagrams
  • Components Diagrams


Power Specs

  • Electrical box
  • Residual current device
  • Emergency Button
  • Energy Signal Lamp
  • 110 VAC 60 Hz or 220-240 VAC 50 Hz


Dimensions and weight

  • Height: Width:    Depth:
