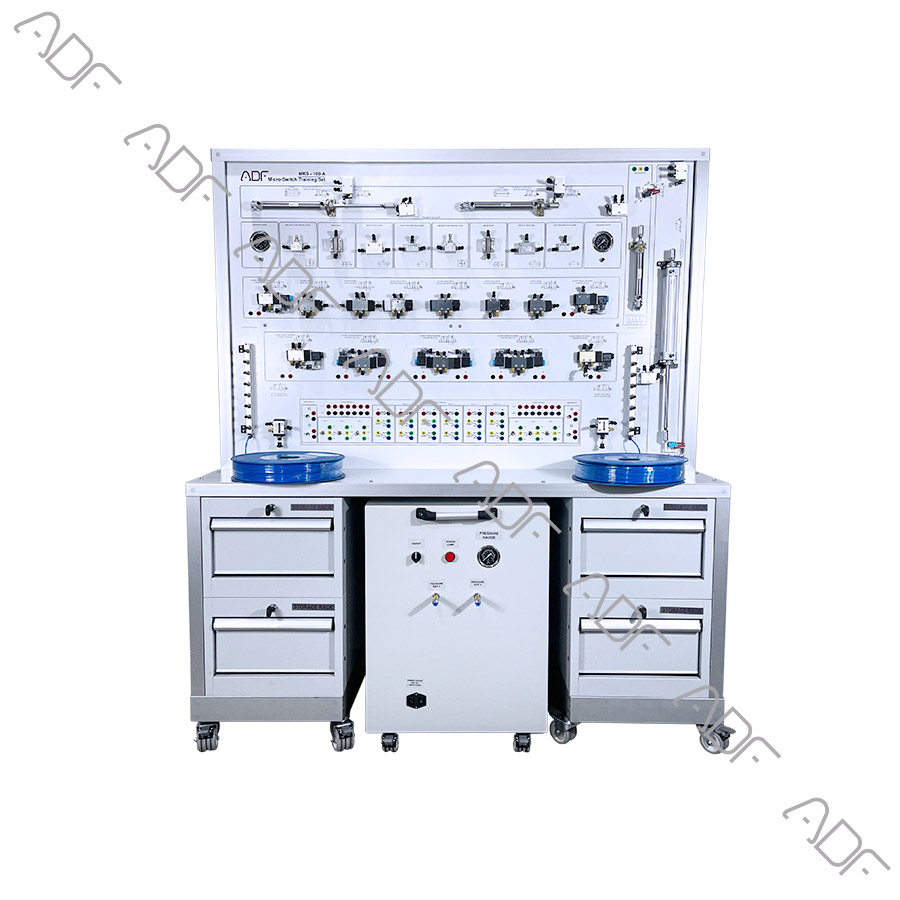

The trainer allows trainees to understand fundamentals of Micro-Switch. Trainer have 5 different type of Micro-Switch which are used with pneumatic system.
Features
Aircraft micro-switch application
3/2-way valve operation
Different types of 5/2-way valve operation
Single-acting cylinder operation
Combine logic operations
Analyze and set up circuits with two cylinders.
Explain and implement AND/OR logic operations.
Components:
Aircraft Circuit breaker
Aircraft Circuit breaker lockout
Aircraft micro-switch
5 different Micro-Switch
Long Lever
Short lever
roller lever ( 2 different type)
Limit Switch
Pneumatic Filter
Min 4 Pneumatic cylinder
Min 1(one) Double acting cylinder with double rod
Min 2(two) Double acting cylinder with single rod
Min 1(one) Single acting cylinder
Min 2(two) Pressure gauge
Min 3(three) 3/2-way roller lever valve, normally closed
Min 3(three) 3/2-way roller lever valve with idle return
