HORTUM VE BORULAMA EĞİTİM SETİ
HT 100B HORTUM VE BORULAMA EĞİTİM SETİ

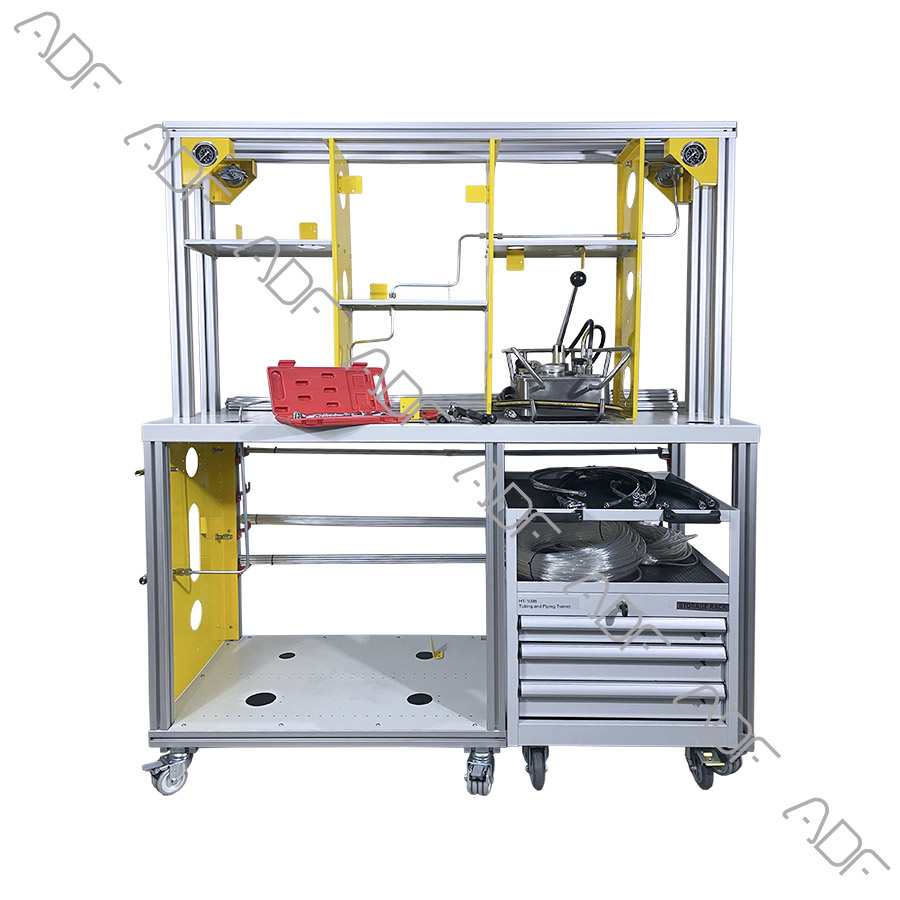

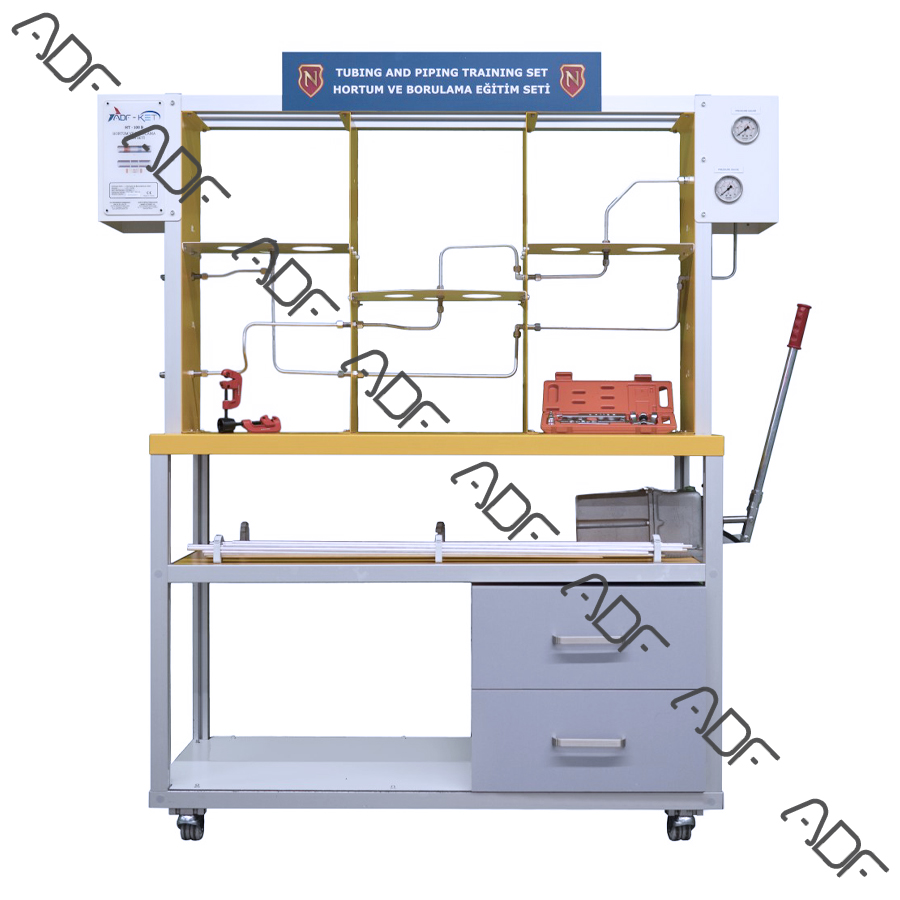

HT-100 A Tube and Hose System Training set provides training on tubing of hydraulic and pneumatic systems in an aircraft. In this training set, tubing and hosing done by trainees can be tested with the pump and gauges.



Features:

  • Understand fundamentals of Tubing and Piping and its components.
  • Practice piping and tubing skills
  • Twenty (20) Different Trainings Scenarios
  • Twenty (20) different transition points
  • Pressure gauges to show the line pressures
  • Vertically and horizontally application

Components:

  • Two (2) hydraulic pressure gauges
  • Two (2) pneumatic pressure gauges
  • Hydraulic tank with hand pump
  • Flaring tools
  • Tube Cutter
  • Tube Bender
  • Fittings (At least 200 units)
  • Male Elbow
  • Male Plug
  • Female Plug
  • Male Cross
  • Female Cross
  • Nipple
  • Cap
  • Sleeve
  • Nut
  • Straight
  • Female run tee
  • Male run Tee
  • Female elbow
  • Adaptor
  • Fifty (50) meter transparent pneumatic hose
  • Fifty (50) meter aluminum and Twenty (20) meter metal hoses
  • Two (2) drawers for fittings

ATA Chapters

  • The system mounted on a metal/aluminum mobile stand.
  • Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
  • Training video for teachers
  • Delivered fully assembled tested and ready to operate

Documentation:

  • User’s Manual
  • Study Guide

Power Specs

  • None

Dimensions and weight
