KOKPİT EĞİTİM SETİ
CBT 100A KOKPİT EĞİTİM SETİ

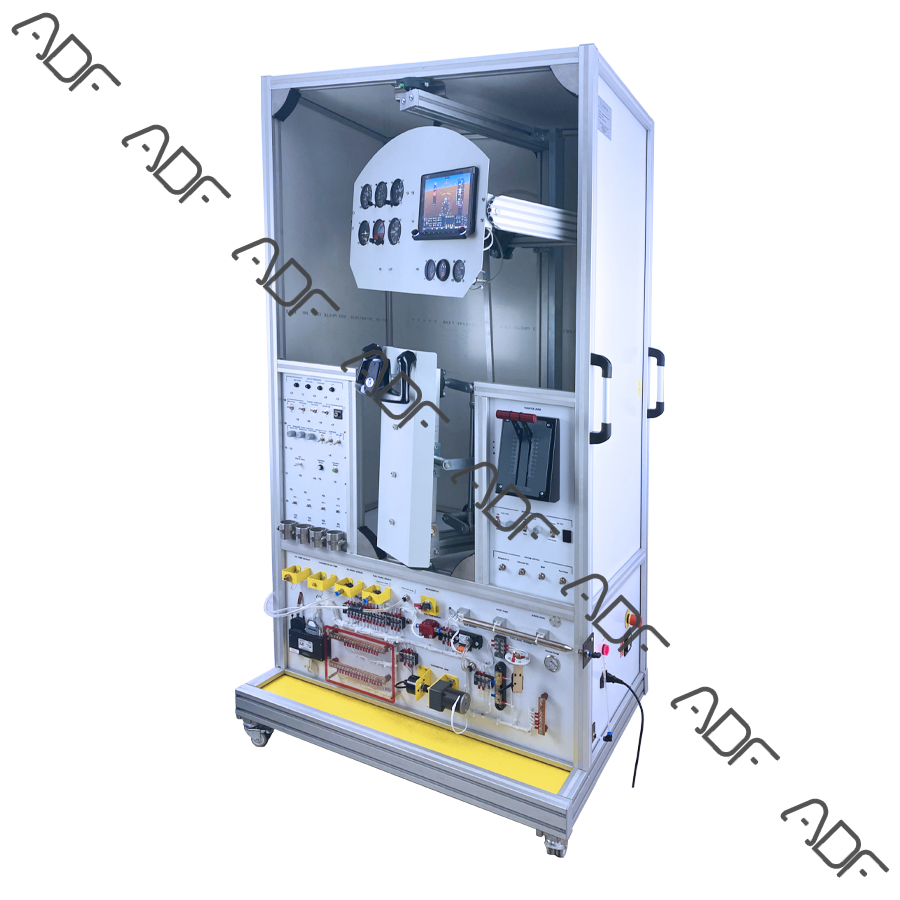

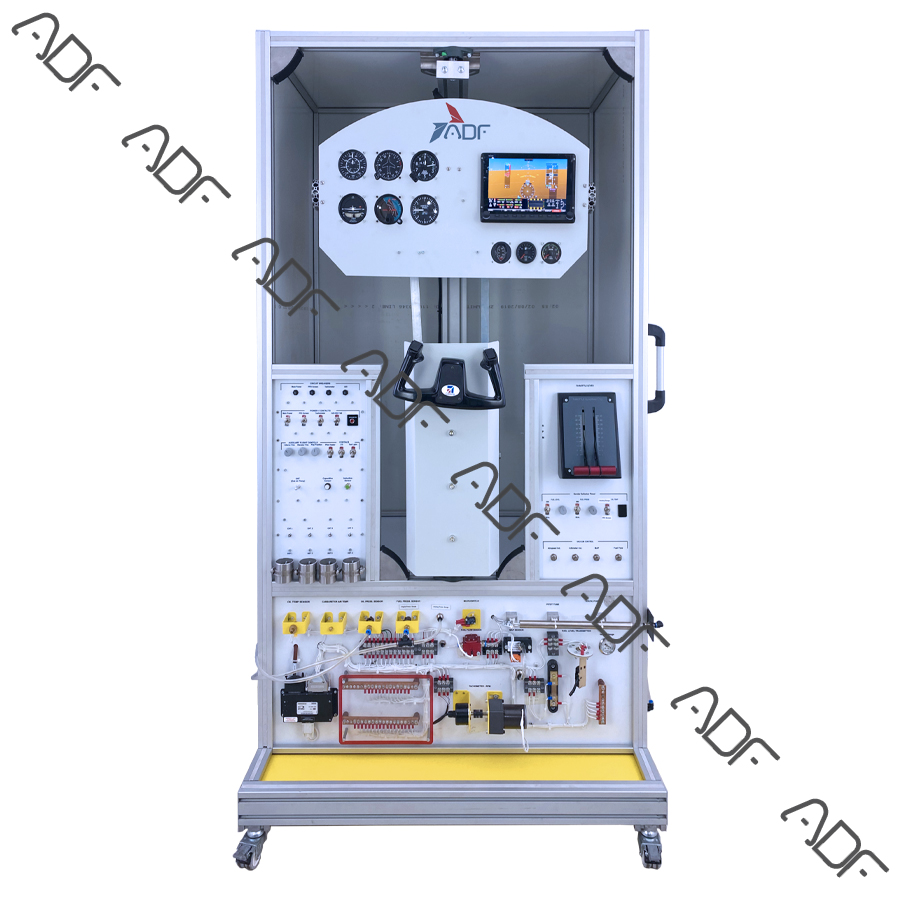

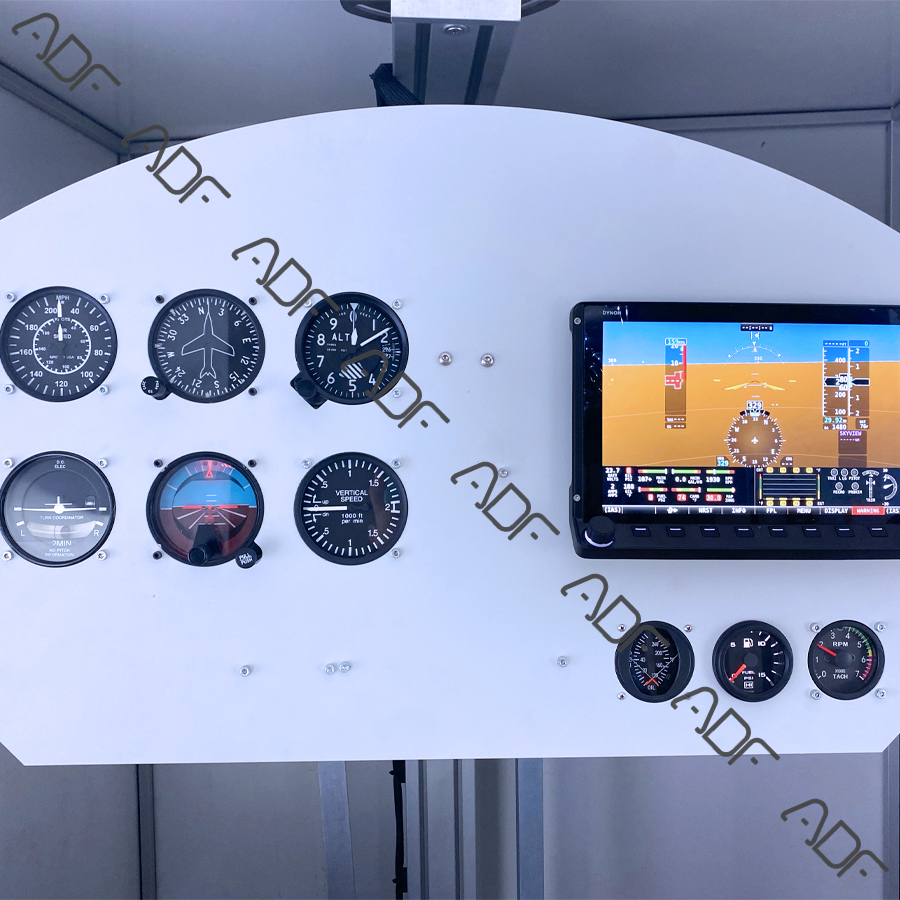

Aircraft Cockpit Instrument Training Set(CBT-100A) is a complete and fully functional simulation of typical aircraft cockpit. It includes essential flight, engine and pitot-static instruments. This training set provides hands-on maintenance training while also functioning as a demonstration tool for instructors. It demonstrates the principles of gyros, altimeter and the engine instruments, and also can be used for teaching of in- strument removal and replacement.

This trainer also allows to perform practical tasks of EASA PART 147 ATA-31-00-00

DOCUMENTATİON

  • User’s Manual
  • Study Guide
  • Instructor’s Guide
  • Device’s original Manual
  • Device’s original Wiring Diagrams
  • Components Diagrams

POWER SPECS

  • Electrical box
  • Residual current device
  • Emergency Button
  • Energy Signal Lamp
  • 110 VAC 60 Hz or 220-240 VAC 50 Hz

OTHERS

  • GPS receiver / antenna
  • Aircraft circuit breakers.
  • Throttle lever.
  • The system combine “Cockpit analog flight instrumentation”, “primary flight instrumentation”, “aircraft systems instrumentation” and “engine instrumentation”.
  • Trainer use the latest in GPS and Digital ADAHRS (Air Data and Attitude Heading and Reference Systems.
  • “Air Data and Attitude Heading and Reference Systems” provide highly accurate and reliable referencing of aircraft position, rate, vector and acceleration data.
  • Three degrees of freedom instrument panel permits full demonstration of attitude and directional gyro functions.
  • Functional engine monitoring system be connected to engine sensors.
  • All analog instruments operate manually
  • Primary flight display be mounted on a panel that can simulate roll, pitch, and yaw movements controlled by a mechanism operated by a control yoke.
  • Provision of engine sensor simulation.
  • Pitot-static system to conduct pitot static system checks for digital instrument at the trainer.
  • Instructor’s Panel for fault insertion.
  • Training video for teachers.
  • Delivered fully assembled tested and ready to operate
  • The system combine “Cockpit analog flight instrumentation”, “primary flight instrumentation”, “aircraft systems instrumentation” and “engine instrumentation”.
  • Trainer use the latest in GPS and Digital ADAHRS (Air Data and Attitude Heading and Reference Systems.
  • “Air Data and Attitude Heading and Reference Systems” provide highly accurate and reliable referencing of aircraft position, rate, vector and acceleration data.
  • Three degrees of freedom instrument panel permits full demonstration of attitude and directional gyro functions.
  • Functional engine monitoring system be connected to engine sensors.
  • All analog instruments operate manually
  • Primary flight display be mounted on a panel that can simulate roll, pitch, and yaw movements controlled by a mechanism operated by a control yoke.
  • Provision of engine sensor simulation.
  • Pitot-static system to conduct pitot static system checks for digital instrument at the trainer.
  • Smart PFD-MFD Screen
  • Engine Data Modules
  • Analog instruments
    • Attitude Gyro and Indicator
    • Directional Gyro / Heading Indicator
    • Airspeed Indicator
    • Altimeter
    • Vertical Speed Indicator
    • Turn and Slip Indicator
    • Fuel Temp/Press Indicator
    • Oil Temp/Press Indicators
    • Fuel Level Indicator
    • MAP
    • RPM
    • Vacuum Gauge
  • Sensors
    • Oil Temperature Sensor
    • Carburator Air Temp Sensor
    • Manifold Pressure Sensor
    • Fuel Level Sensor
    • Oil Pressure Sensor
    • Fuel Pressure Sensor
    • Engine RPM Sensor
    • Fuel Flow Sensor
    • Ammeter Shunt
    • CHT Thermocouples (Qty 4)
    • EGT Thermocouples (Qty 4)
    • OAT Sensor
    • Pitot Tube
    • Static Port
    • Inductive sensor
  • GPS receiver / antenna
  • Aircraft circuit breakers.
  • Throttle Lever
  • Propeller Lever
  • Pitot-Static System:
    • Pitot Tube
    • Fuselage Static Port
    • Alternate Static Port
    • Static Source Selector Switch
    • Two Test Ports for Pitot-Static Test Set
  • Power
    • Main Power
    • PDF
    • Tachometer
    • Turn&Slip
    • Vaccum Pump
  • Contacs:
    • Pitot Heater
    • L/G
    • Taxi Light
  • Auxiliary Flight Control:
    • Aileron Trim
    • Elevator Trim
    • Flap Position
  • Electronic Simulation of Sensors:
    • Oil Temperature Manifold Pressure
    • Engine RPM
    • Oil Pressure
    • Fuel Level
    • Fuel Press
  • Sender Sellector Panel
    • Fuel System
    • Oil System
  • Vacuum Control Panel
    • Static System İnstrument
    • MAP
    • Fuel Flow
